Launching a JVM from C++ on Mac OS X

I’d been playing around with starting up a JVM from C++ code on Windows. I was futzing around between MSVC and cygwin/mingw and it all worked well. Then I decided to do the same under Mac OS X.

Firstly, if you’re using the OS X VM, when you try to compile some simple code under clang, you’re going to see this awesome warning:

warning: 'JNI_CreateJavaVM' is deprecated [-Wdeprecated-declarations]

Apple really, really don’t want you using the JavaVM framework; in general if you want to use their framework, you have to ignore the warnings. and soldier on.

Secondly, if you want a GUI, you can’t instantiate the VM on the main thread. If you do that then your process will deadlock, and you won’t be able to see any of the GUI.

With that in mind, we hive-off the creation of the VM and main class to a separate thread. With some crufty code, we make a struct of the VM initialization arguments (this code is not clean it contains strdups and news and there’s no cleanup on free):

struct start_args {
    JavaVMInitArgs vm_args;
    const char *launch_class;

    start_args(const char **args, const char *classname) {
        vm_args.version = JNI_VERSION_1_6;
        vm_args.ignoreUnrecognized = JNI_TRUE;

        int arg_count = 0;
        const char **atarg = args;
        while (*atarg++) arg_count++;
        JavaVMOption *options = new JavaVMOption[arg_count];
        vm_args.nOptions = arg_count;
        vm_args.options = options;

        while (*args) {
            options->optionString = strdup(*args);
            options++;
            args++;
        }
        launch_class = strdup(classname);
    }
};

Next we have the thread function that launches the VM. This is a standard posix thread routine, so there’s no magic there.

void *
start_java(void *start_args)
{
    struct start_args *args = (struct start_args *)start_args;
    int res;
    JavaVM *jvm;
    JNIEnv *env;

    res = JNI_CreateJavaVM(&jvm, (void**)&env, &args->vm_args);
    if (res < 0) exit(1);
    /* load the launch class */
    jclass main_class;
    jmethodID main_method_id;
    main_class = env->FindClass(args->launch_class);
    if (main_class == NULL) {
        jvm->DestroyJavaVM();
        exit(1);
    }
    /* get main method */
    main_method_id = env->GetStaticMethodID(main_class, "main", "([Ljava/lang/String;)V");
    if (main_method_id == NULL) {
        jvm->DestroyJavaVM();
        exit(1);

    }
    /* make the initial argument */
    jobject empty_args = env->NewObjectArray(0, env->FindClass("java/lang/String"), NULL);
    /* call the method */
    env->CallStaticVoidMethod(main_class, main_method_id, empty_args);
    /* Don't forget to destroy the JVM at the end */
    jvm->DestroyJavaVM();
    return (0);
}

What this code does is Create the Java VM (short piece at the start). Then it finds and invokes the public static void main(String args[]) of the class that’s passed in. At the end, it destroys that Java VM. You’re supposed to do that; for memory allocation’s sake.

Next we have the main routine, which creates the thread and invokes the run loop

int main(int argc, char **argv)
{
    const char *vm_arglist[] = { "-Djava.class.path=.", 0 };
    struct start_args args(vm_arglist, "launch");
    pthread_t thr;
    pthread_create(&thr, NULL, start_java, &args);
    CFRunLoopRun();
}

The trick is the CFRunLoopRun() at the end. What this does is triggers the CoreFoundation main application run-loop, which allows the application to pump messages for all the other run-loops that are created by the java UI framework.

The next thing is an example java file that creates a window.

public class launch extends JFrame {
    JLabel emptyLabel;

    public launch() {
        super("FrameDemo");
        emptyLabel = new JLabel("Hello World");

        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        getContentPane().add(emptyLabel, BorderLayout.CENTER);
        pack();
    }

    public static void main(String args[]) {
        SwingUtilities.invokeLater(new Runnable() {
            public void run() {
                launch l = new launch();
                l.setVisible(true);
            }
        });
    }
}

Because it’s got a EXIT_ON_CLOSE option, when you close the window the application will terminate.

Gluing this into a makefile involves the following; it’s got conditional sections for building with either the 1.6 or 1.7 VM, and there are a couple of changes that are needed in the cpp code to get this to work:

JAVA_VERSION?=6

JHOME:=$(shell /usr/libexec/java_home -v 1.$(JAVA_VERSION))
SYSTEM:=$(shell uname -s)

CPPFLAGS += -DJAVA_VERSION=$(JAVA_VERSION)
CXXFLAGS += -g
ifeq ($(JAVA_VERSION),7)
VM_DIR=$(JHOME)/jre/lib
LDFLAGS += -L$(VM_DIR)/server -Wl,-rpath,$(VM_DIR) -Wl,-rpath,$(VM_DIR)/server
CXXFLAGS += -I$(JHOME)/include -I$(JHOME)/include/$(SYSTEM)
LDLIBS += -ljvm
else
CXXFLAGS += -framework JavaVM
endif

CXXFLAGS += -framework CoreFoundation

all: launch launch.class

launch.class: launch.java
	/usr/libexec/java_home -v 1.$(JAVA_VERSION) --exec javac launch.java

clean:
	rm -rf launch *.class *.dSYM

For the C++, you need to change the include path depending on whether you’re building for the 1.6 or 1.7 VM.

#if JAVA_VERSION == 6
#include <JavaVM/jni.h>
#else
#include <jni.h>
#endif

.

You can’t really use the code that was compiled against the 1.6 VM on the 1.7 environment, as it uses the JavaVM framework in 1.6, vs. the libjni.dylib on the 1.7 VM, but I would consider this a given across all JVM variants.

This source can be cloned from the Repository on BitBucket.

RAII, or why C++ doesn’t have a finally clause

One of the most common idioms I see in a delphi program looks like the following:

foo := TObject.Create;
try
    // Do something with foo
finally
    FreeAndNil(foo);
end;

It’s primarily because you always create objects on the heap, and everything involving an object, essentially, is a pointer. This makes for a little bit of a memory management issue. You have to remember to destroy objects after you’ve created them, and because if something goes wrong, that destruction needs to take place in a finally block. Having it take place in a finally block keeps you safe from exceptions. If an exception is triggered it always passes through the finally block on it’s way back up the stack. This gives you the ability to cleanup temporary objects as needed

C++ uses the RAII idiom, which means that objects that are defined at a certain scope are always going to be destroyed once that scope is exited. What this means is that if you define an object X in a function Y, once Y is returned from then X will be destructed/destroyed. As an example:

std::stringstream streamer;
// do something with streamer

There’s no awkward streamer.create call, and once you return from the function streamer is appropriately tidied up

But wait, you say, they are not the same, what you are doing in Delphi is creating an object on the heap, while in C++ you are creating it on the stack, so of course during the process of unwinding said stack, you will destroy the object. The more equivalent code in C++ would have been:

std::stringstream *streamer = new std::stringstream();
// Do something with streamer
delete streamer;

Hah you say, no try finally means that if an exception is triggered in the ‘do something’ piece of code, you leak a streamer object on the heap.

To which I respond, silly rabbit, that’s why you didn’t create a pointer in the first place with the first piece of code. If you want to perform something like this, then you should use a smart pointer, which takes care of the destruction of the object once the smart pointer exits scope, like so:

std::unique_ptr&lt;std::stringstream&gt; streamer(new std::stringstream);
// Do something with streamer

But really, if you were just going to create an entity for the duration of a function, it’s far easier to just create it in-place without such complications

This leads to a little gotcha that regulary catches non C++ programmers when they are creating methods. As they typically come from a pointer-based economy (e.g. Delphi, Java), when they create a method:

function doSomething(object : TObject) : integer

What they’re doing is actually passing in a reference to TObject (as it’s just a pointer), and because it’s pass-by-value in this case, what they’re really just passing in is the value of the pointer. In C++ it’s a little bit different. When you pass in an object using the form:

int do_something(std::stringstream streamer)

What actually happens is a copy is made of the item being passed, and it’s that which ends up in the function; not the actual object that you’re passing in. If you want to pass in a reference to the object, then you need to use the reference passing semantic:

int do_something(std::stringstream &streamer)

You can use the const modifier if the method you’re invoking is not going to modify the passed in reference, which allows you to restrict the things you can do with the reference. In this form you don’t need to perform any indirection on the object (e.g. getting a pointer to it) in order to pass it in. This makes for slightly tidier code, which isn’t strewn with &’s on the way in, and var->’s in the method itself.

And for those Delphi haters out there; the reason I picked Delphi rather than Java is because Delphi is, unless you’re using the .NET variant, a non garbage collected language, and as such requires the free, otherwise you get memory leaks.

Objective C is another kettle of fish. Between the original model of retain/release, the GC model that was available on OS X from 10.5, and now the totally shiny ARC mechanism, it makes some people cry.

Gotcha!

So I found this little security clanger in the manual page for dlopen on Mac OS X, where it states:

When path does not contain a slash character (i.e. it is just a leaf name), dlopen() searches the following until it finds a compatible Mach-O file: $LD_LIBRARY_PATH, $DYLD_LIBRARY_PATH, current working directory, $DYLD_FALLBACK_LIBRARY_PATH.

Yes, current working directory, one of the classic vulnerability injection mechanisms. This is as epically bad a security clanger as Microsoft Windows’s LoadLibrary call but, apparently, nobody cares! Linux, and Solaris have a far more sensible mechanism, where it actually enumerates the places that it looks for the library, but unless you really, horrendously eff it up, it won’t look in the current working directory.

I nearly did a spit-take when I saw this explicitly called out. In this day and age, it’s an embarassment.

The Disappointment of New Features

I’m reading articles on new features in the CSS media queries level 4 spec. Items such as luminosity, which allow you to adjust the styling on your app depending on three grades of environmental brightness. This means you could adjust that bright white as it gets darker, so that it doesn’t blind someone who’s trying to read it in a darkened room (I had this experience this morning when the auto-brightness setting on my nexus decided that full-on-bright was what I needed while triaging my email at 6am, with the lights off).

It’s a pretty nifty feature, and once people start using it we’ll probably all reap the benefit.

The problem is that as of now, it’s pretty much only in a limited set of web browsers. Even though I have a laptop with an ambient lighting sensor, I’ll never see this work properly anytime in the near future.

The next thing I was reading was about making non-rectangular clipping areas for text so that it would flow around images. Looks pretty awesome, and makes things look more like a desktop publishing environment. Only available in Chrome Canary (which means, at the moment, the most bleeding-edge version of Chrome). Which makes it another feature that we have to wait for.

C++11 introduced some nice features such as Lambdas, which allow you to define the work to be done on something in the same place as the request to perform the work. It’s pretty nice as you can in-line work quite easily, whereas in previous languages you relied on an external function, typically with pointers to a data blob… the whole thing was quite tedious and leads to difficult to understand code. Again, you need a modern compiler that understands the C++11 syntax, but once you have it, it’s plain sailing. You ever tried to compile gcc… it’s fun times for all 😉

Again, a new feature, but it generally comes with a whole bunch of things that have to change to support it.

This is where the disappointment comes in. All these shiny features are available on the shiniest of newest systems. As developers, we like having the newest stuff – from operating systems to development environments, to programming languages. They all provide us with the ability to do our jobs better, and in a more efficient manner. It also allows us to royally screw things up much more rapidly, and then fix it so you almost don’t notice that it happened.

That’s not where most of the world lies. Most folks are living in the ‘it got installed, I’m not touching it’ world. It makes things difficult for us developers as we have to match up our work to what functions in their environment. That means we can’t use the newest version of X, because that’s not going to be present on the end-user’s system.

There is a sliver of bright light in the form of the automatic update. If you’re using Google Chrome, or any recent version of Firefox then unless you change something, it will always be silently updating to the newest version behind your back. This means that the next time you start it up, you’ve got the latest and greatest available. All the features are present. Unfortunately, this also means that the changes can trigger failures. This can be caused by a lack of testing, or a lack of backwards compatibility.

When it happens because of a lack of backwards compatibility, then people get genuinely angry – it used to work and now it simply doesn’t, and for no reason whatsoever. On Internet Explorer we have the ‘do the wrong thing’ switch, which causes the browser to act in the old, bad way, so that a user’s experience does not change when they install the newer browser.

I don’t think this is really going anywhere, so I’ll leave it as-is then.

There is a reason that it gets called an interface.

I’ve been writing commercial software since 1996. Since then the Microsoft API for WIN32 has been extended to support the 64bit platform, but most of everything I learned while writing to that platform is just as applicable now as it was back then.

I’ve written apps for the JIRA SOAP API. They work well; as long as the soap interface doesn’t throw a wobbler. It throws a wobbler every effing day now. The SOAP API for Jira has been deprecated for the newer, shiner, REST API.

Fuck you.

Fuck you and your spurious deprecation of APIs because it’s not something that fits into your grand design.

This is not how you write an API.

Dave Winer had it right many years ago with the RSS API. It was really fucking simple, and I wrote a parser for it in ass-clown perl that worked well for everything I wanted it to do. Even when people started to put incorrect entities in their feeds I could deal with it. It still runs, and I’ve not changed it in over 7 years.

Oh no, they say, look at the major version they say, it keeps incrementing and they only have a limited obligation to support something once the major number increments.

Fuck you.

Version number increments are meaningless. When we have a Firefox 17 in January and a Firefox 23 in August, a Chrome 18 in January and a Chrome 28 in August I mean seriously, you’re making a fucking argument here? Every one of those goddamned browsers can still read HTML. They may not all *render* it the same way, but a <div> is a <div> is a fucking <div>.

One of the most stable APIs in computers is the concept of time(). Time is counted as the number of seconds since 12:00, Jan 1, 1970. Many have written alternative APIs for time, but all of them provide some call that allows you to translate that special structure into a number representing the number of seconds since that point in time. That is an API.

I’m full certain that somewhen in the 40th century, some piece of code will depend on a 64bit version of the time() call, and it will work.

You people have no fucking idea how to write an interface.

There is a reason why they call it an interface, it’s meant to be something you can program against for a reasonable amount of time.

Not like Facebook.

I can still remember those x86 beeps and boops from Leisure Suit Larry

When I first played Leisure Suit Larry, I believe I was 13? It took some time to get the answers right so that the game could be played. Some of them were culturally difficult to get right – I mean from someone who was raised on 1 TV channel, how would we be expected to know who ‘Annette Funicello’ was? I was young and immature – this game informed me of things like condoms, which I didn’t actually know about until that time (wow! complete time-warp here). My father was a pharmacist. At the time this game was available, he did not sell condoms. There was a lawsuit pending in relation to the supply of condoms from a vending machine in, if I remember correctly, the student’s union in UCD (University College Dublin). This is the kind of country I live in.

Graphics were insanely different back then – most PCs had CGA graphics – that meant you had a choice of palettes of 4 colors. i.e. you could only pick the set of colors to use, not the actual colors themselves. Cyan hair. I remember the hair being cyan because there were no alternative colors available.

There was a VGA remake of the game. The graphics were updates, and the colors were changed; but the overall gameplay had never been altered from the original. I went back and played it. It was the same as the game of my youth. The problem was that it didn’t work for me anymore. The jokes were lame, the puns were terrible, most of the comedy was suitable for someone of a younger age than me. I never finished it because I didn’t care enough to finish it.

There was a recent kickstarter that created an ‘Leisure Suit Larry: Reloaded’. It tried to update and improve the original game. Characters were added, characters were removed; but ultimately it was trying to bring back the original game. The game has been released and the reviews have been generally negative. I’m one of those that fall onto the negative side. The reason I fall on the negative side is because the game has been lessened by the remake. It didn’t bring back the feelings from the original game (the prurience or the oooh, errr, madam bit of it), and added tat. Pointless rubbish has been added to the game to bring it ‘up to date’. The questions are actually difficult for someone of my age that doesn’t actually watch reality TV, or follow pop culture icons. Once I got past that; the game itself just didn’t feel right. The changes made the game less ‘silly fun’ and more ‘sexist crap’.

Maybe my tastes have changed (and that’s a good change), but I didn’t enjoy the remake anywhere as much as I remember enjoying the original game; which is sad.

A much more cogent analysis of the game can be Foubd on Gamasutra. It is far better at describing the poor decision to have a remake, and also to enunciate the ways it doesn’t work.

Someone asks ‘I like the way python has a None return value for I didn’t find something’

Yes, that’s the title, no, that’s not what it does.

Python’s primary control mechanism is the exception. Nine times out of ten, if something is not found, python throws an exception. If you’re looking for a value and it’s not found, python throws an exception. If it’s Tuesday and your function call expects it to be Thursday, python throws an exception.

The entire language is designed around the fact that an exception is not exceptional, it’s just par for the course. What. The. Fuck.

Python’s None value is the definitive False, it means No, Non, False, Empty, Not there. The only issue with it is that it actually matches on simple equality tests. If you have an ‘if foo’ case, and foo is None, then it matches the false case. This is not right. None means ‘Neither True nor False’, you should be required to test against it explicitly, not be allowed to pass it through from the ‘not True’ case.

SQL has the NULL value, which is a special ‘does not exist’ value, and it doesn’t operate in the usual mechanism. Equality tests against NULL *always* fail – you must check against ‘is NULL’ or ‘is not NULL’, you cannot check against a string or value, it just doesn’t operate in that way.

The fact that python uses exceptions when it doesn’t find a value is because of the weakness of the None value, it doesn’t act like NULL, it acts like False, and that is lame.

How to ruin the lines of your device

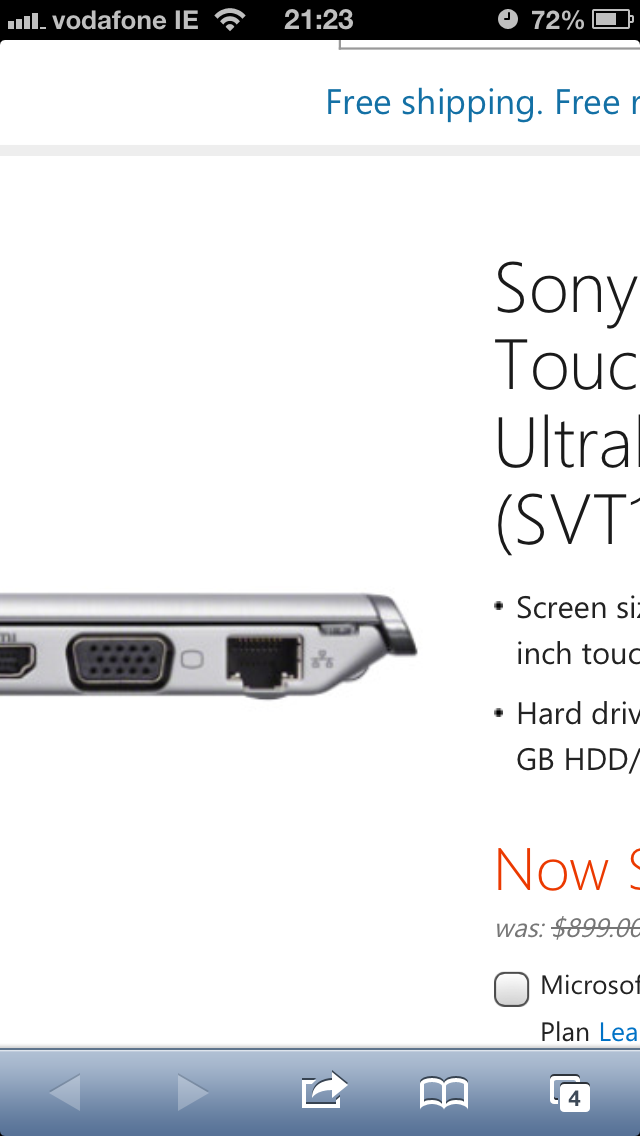

Ultrabook With VGA portSo this is a screen grab from the Microsoft store of a Sony Ultrabook. For some odd reason, this UltraBook has a VGA port. It doesn’t look too hideous when you’re looking at it from this angle, but once you get into the store and have a gander at the device, the VGA port is this ugly looking port jutting out of the side of your machine.

It’s adjacent to an HDMI port.

I’d even recommend using a DisplayPort port before putting a damned VGA port. DisplayPort has adaptors for DVI, HDMI and VGA.

I’d much prefer to have to carry around an adaptor for the laptop rather than have such an ugly port ruining the lines of my UltraBook.

Then the VAIO DUO laptop, which has a touch screen and a slide-up keyboard; reminding me of those odd phones from the past. It too has a fugly VGA port on the side, while including a HDMI port and two USB 3.0 ports.

W.T.F. Sony, seriously, I do realize that everything is driven from the hardware team, but get back to them with the message that the 80’s called and they want their VGA port back.

Are you really trying to increase market share?

Microsoft have three different kinds of mobile phone operating system.

  • The 6.x series, which is really only usable with a stylus, and is old, out of date, and generally a pain to use.
  • The 7.x series, which is, fundamentally a step above the 6.x series, with a more modern UI. It is slick and elegant, but it is based on the kernel from the 6.x series, and as such is a little bit on the old side.
  • Now there is the 8.x series, which runs the proper windows kernel under the hood, but just with a mobile phone UI on top. It looks very similar to the 7.x series, but the hardware is significantly different; so much so that there is no way to upgrade a phone from the 7.x series to the 8.x series — you will have to buy a new phone to get the features of the new OS.

This new series of phones (the 7/8 series) is a huge step forward for Microsoft. There is a consistent UI, there is a defined design language. You have an App Store for buying all those must have applications; all in all everything you need for a modern phone.

Then there’s the desktop software. For 7, you have the Zune software. This is needed if you want to copy music or movies from your computer to your phone, or transfer photos back from the phone to your desktop.
I have no experience with the windows phone app for an 8 phone, as I haven’t had the opportunity to buy one of these new phones yet. I’m sure it’s an elegant piece of software that interacts well with the phone, allowing you to transfer media to and from. The device; after all, that’s what it’s supposed to do.
The problem is that this is the only way to interact with these phones and your desktop. There is no way to get anything from the phone by a direct connection without installing the software. Microsoft have gone directly to the same model as Apple with regards to device management, except less so — the Apple solution allows you to synchronise your email settings and contact information explicitly, while the Microsoft solution does not. Don’t get me wrong, a little management is a good thing when it comes to these devices which are significantly more complicated than older devices, but sometimes you just want to pull a picture from the phone and it just doesn’t happen.

If you plug an android phone into a computer up pops a hard drive icon that you can use to copy files from the device, or copy files to the device. It may be as raw as you get, but at least you can drag your music to the device and it just works. There are several third party programs that will allow you to manage the content on the device, so if you don’t like it then you can use one of the DoubleTwists, etc.

Transferring pictures from the phone provides a wide variety of social services, but gone is the simple ‘send via Bluetooth’ (again with the media management thing). Have you ever tried to print a picture from a photo kiosk on a Windows phone? It’s as difficult as with an iPhone — you just don’t bother. Lots of lovely images on the web, and not an actual photo to be seen 🙁
